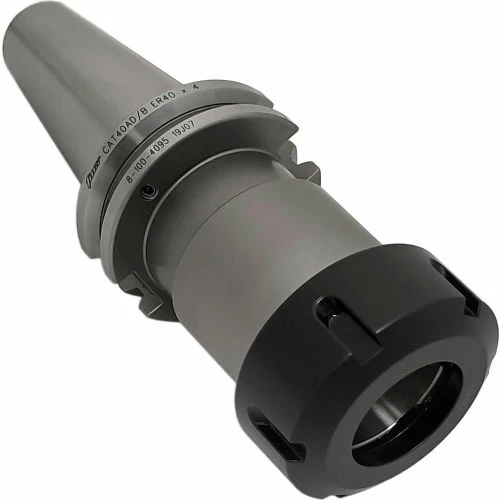

TMX CAT40 Collet Holder, Steel, AD/B, ER40 X 4"

Original price was: $211.95.Current price is: $93.99.

SKU: TMX WBB3044408 Categories: Collet Chucks, Tool Holders Tags: 1, AD/B, CAT40, ER40, G6.3/15,000 rpm, Machining, Silver, TMX

Quality products for every lifestyle.
7-Day Returns, 100% Quality
Effortless solutions, excellent customer care.
Best price, safe shopping guarantee

Features:

Max run out is .0002″ TIR for concentric consistent milling
H5 inside diameter tolerance
AT3 taper accuracy for excellent holder / spindle engagement
Machined and shot blast surfaces to view surface integrity
Will accommodate single and double ended end mills
Compatible with popular machines
Draw bar thread for CAT 40 = 5/8″-11, CAT 50 = 1″-8
ANSI B5.50-1994

Collet Capacity	ER40 in
Material	Steel
Brand	TMX
Clamping Range	1/8 – 1"
Balanced	G6.3/15,000
Hex Key Size	Slotted
Manufacturers Part Number	8-100-4095
Description	CAT40 Collet Holder AD/B ER40x4"
Set Screw Thread	1-1/8-16 x 1/2"
Flange Type	8-815-180
Coolant	AD/B
Collet	ER40
Style	ER40
Color Family	Silver
Number of Pieces	1
Type	CAT40
Max RPM	G6.3/15,000 rpm
Dimension D1	63 in
Gauge Length	4 in
Flange Diameter D	M4 x .7 x 4mm
Collet Size	ER40
Warranty	1 yr
